WCT Duo-Surface 32-Bit EMV Chip CIU9872B_01 Plus Chip
Product Description:
EMV cards are smart cards, also called chip cards, integrated circuit cards, or IC cards, which store their data on integrated circuit chips, in addition to magnetic stripes for backward compatibility. CIU9872B_01 Plus chip uses 32-bit secure CPU core and EEPROM memory, supports hardware cryptographic algorithms (DES/AES/ECC/RSA/SHA-n, SM1/SM2/SM3/SM4), supports multiple interfaces: 7816/14443/ I2C / GPIO, for financial applications.

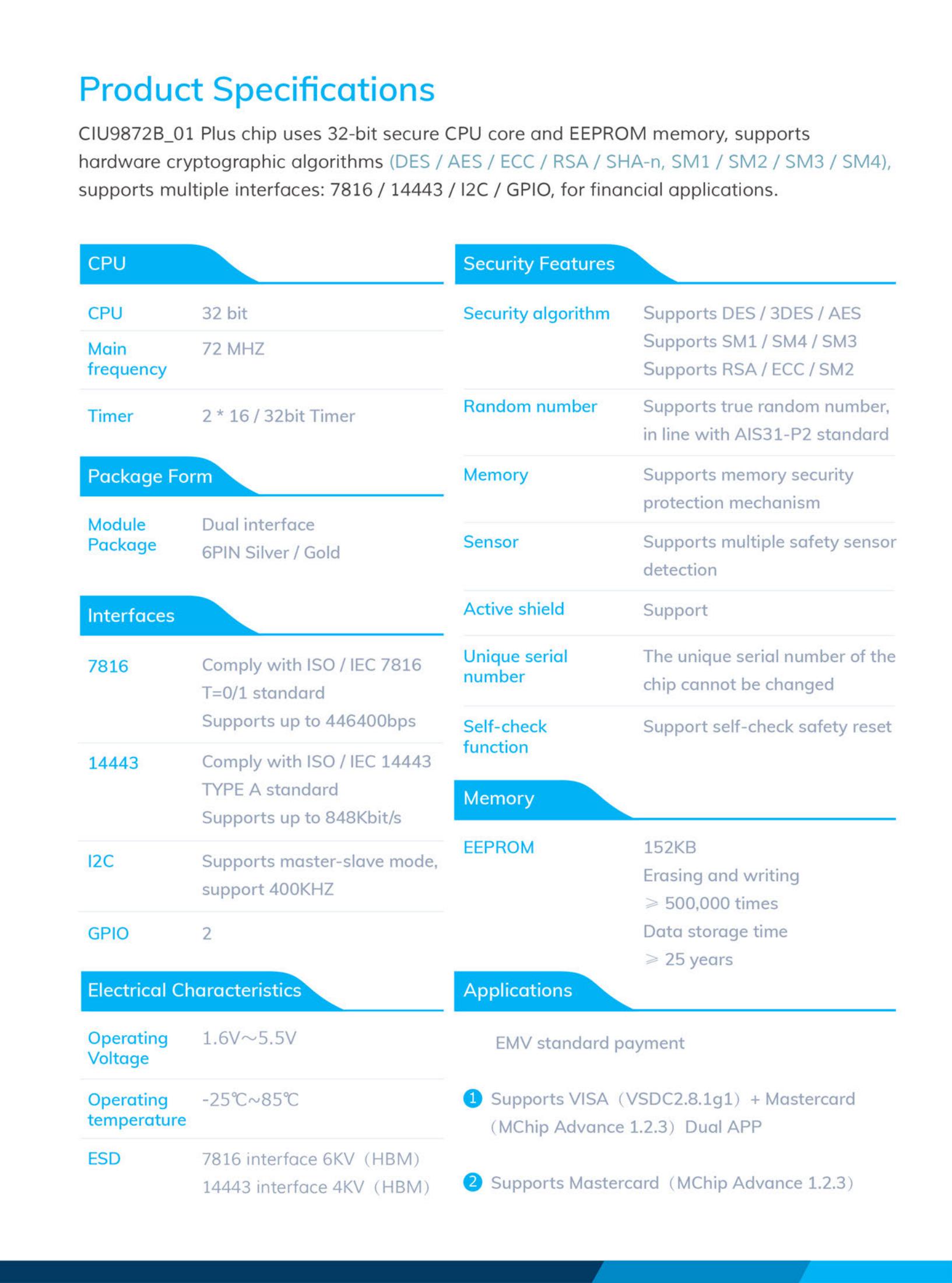

Specification:
| CPU | Security Features | | CPU | 32 bit | Security algorithm | supports DES/3DES/AES | | Main frequency | 72MHZ | supports SM1/SM4/SM3 | | Timer | 2 * 16/32bit Timer | supports RSA/ECC/SM2 | | | | Random
number | Supports true random number, in line
with AIS31-P2 standard | | Memory | Memory | Supports memory security protection
mechanism | | EEPROM | 152KB | Sensor | Supports multiple safety sensor
detection | Erasing and writing
≥ 500,000 times | Active shield | support | Data storage time
≥ 25 years | Unique serial
number | The unique serial number of the chip
cannot be changed | | | | Self-check
function | Support self-check safety reset | | | | | | | Interfaces | | Package Form | | 7816 | Comply with ISO/IEC 7816
T=0/1 standard | Module
Package | Dual interface | | Supports up to 446400bps | 6PIN Silver/Gold | | 14443 | Comply with ISO/IEC 14443
TYPE A standard | Applications | | Supports up to 848Kbit/s | EMV standard payment | | I2C | Supports master-slave mode,
support 400KHZ | 1)Supports VISA(VSDC2.8.1g1)+ Mastercard
(MChip Advance 1.2.3)Dual APP | | GPIO | 2 | | Electrical Characteristics | | Operating
Voltage | 1.6V～5.5V | 2)Supports Mastercard(MChip Advance 1.2.3) | Operating
temperature | -25℃~85℃ | | ESD | 7816interface 6KV(HBM) | | 14443interface 4KV(HBM) | | |
Service:
1. QC: Every single card will be carefully checked by machine or manual work before dispatched.
2. Accept personalized customization.
3. Strict quantity control on processing.
4. On time delivery.
5. Quality assurance: 1year warranty after delivery.
6. Quick response: Your inquiry will be replied in 24 hours.
Why Choose Us
1. We have our own production factory help us make sure of our delivery times and product quality. Over 10 years of experience gives us the edge!
2. Our professional technical team can quickly provide pre-sales and after-sales service. and we have full experience in construction, our engineer team is integration of theory and practice.
3. We currently provide OEM/ODM services for many customers worldwide. We have full design experience for indoor and outdoor display.
4.Many of our current products are available in a very fast manner in order for you to test and approve of our strong quality of goods. Don’t be fooled by some factories that will offer the best products below the market price, you pay for what you get is the safe way to look at your over sea’s purchases.
5. As part of our multiple services, we can offer 1 year warranty on all our products. Secure yourself and ask us about our extended warranty programs.
Product Tags:
|
|
ISO14443 ATM Card Chip GPIO Interface CIU9872B 01 Plus EMV Chip Images
|
